Chassis model

Cab model

Wheelbase

Front suspension/back suspension

Outline dimension

Rated Load On Front Axle

Rated Load On Rear Axle

Rate Total Load on Chassis

Gross Weight

Max. Speed

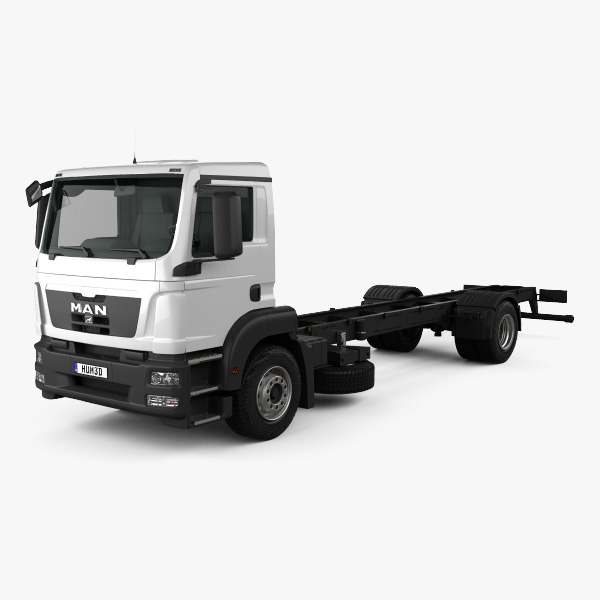

TGM 13.290 4×4 BL

MAN TGM“C”Cab

3650mm

1400/2125 mm

7335×2377×3089 mm(空载with no load)

Front axle 6000 KG

Rear axle 7800 KG

13000 KG

5415 KG（±3%）

120KM/h

Tyre

385/65R22.5

Engine，

Cooling system，

Clutch

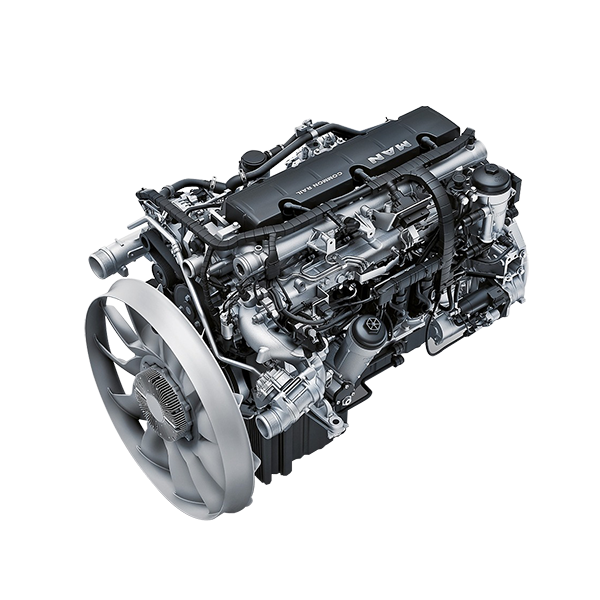

MAN Diesel common-rail 4-cylinder turbo-charged engine

Model D0836LFLAI

Maximum net power: 213 kW/290 horsepower at 2300 rpm

Maximum torque 1150N · m

In-line four-cylinder turbo-charged, inter-cooled, electronic diesel

LOutput: 6.87L

Temperature-controlled fan, fuel filter with heating function, additional fuel filter with heating function and oil-water separator, flame preheating Cold Start system (fit for cold areas), 80 dB denoise, cruise control, etc.

395mm single-chip clutch

Inlet and Exhaust System

Standard inlet and exhaust system

Transmission

Model: ZF12AS1210OD, automatic, mechanical gearbox

12 forward shifts, 2 reversing shifts, with a neutral switch

Front Axle and Front Suspension

VP-06 front driving axle

Loading 6000KG

With rolling rod, differential lock with buzzer

Leaf spring suspension

Rear Axle and Rear suspension

HP-0928 two-stage deceleration rear axle, single tire

Loading 7800KG

With rolling rod, differential lock

4-airbag air suspension

Fuel tank

Diesel 300L, with strainer, lockable lid

Steering mechanism

Hydraulic servo (th height and angle of the steering wheel can be adjusted)

Frame

U-shaped stringer: front 964/rear 864 × 220 × 70 × 7; with steel bumper

Braking system

MAN BrakeMatic electronic braking system, with ABS

Front and rear disc brakes

Dual-circuit braking system, heating air dryer

Auxiliary braking: engine exhaust braking

Cab & Instrument

C Cab (regular cab with two doors), 2240mm wide, 1620mm long;

the height, longitude position and angle of the driver seat and the front passenger seats, can be adjusted;

storage space in multiple positions, environment-friendly air conditioning system with automatic temperature-control (R134A cooling medium, Freon-free), Radio + CD, central controlled door locks, electric windows on both sides, electric powered & thermoal rear-view mirrors, electric & thermal wide-angle lens, and lower-view mirror to the right, etc.

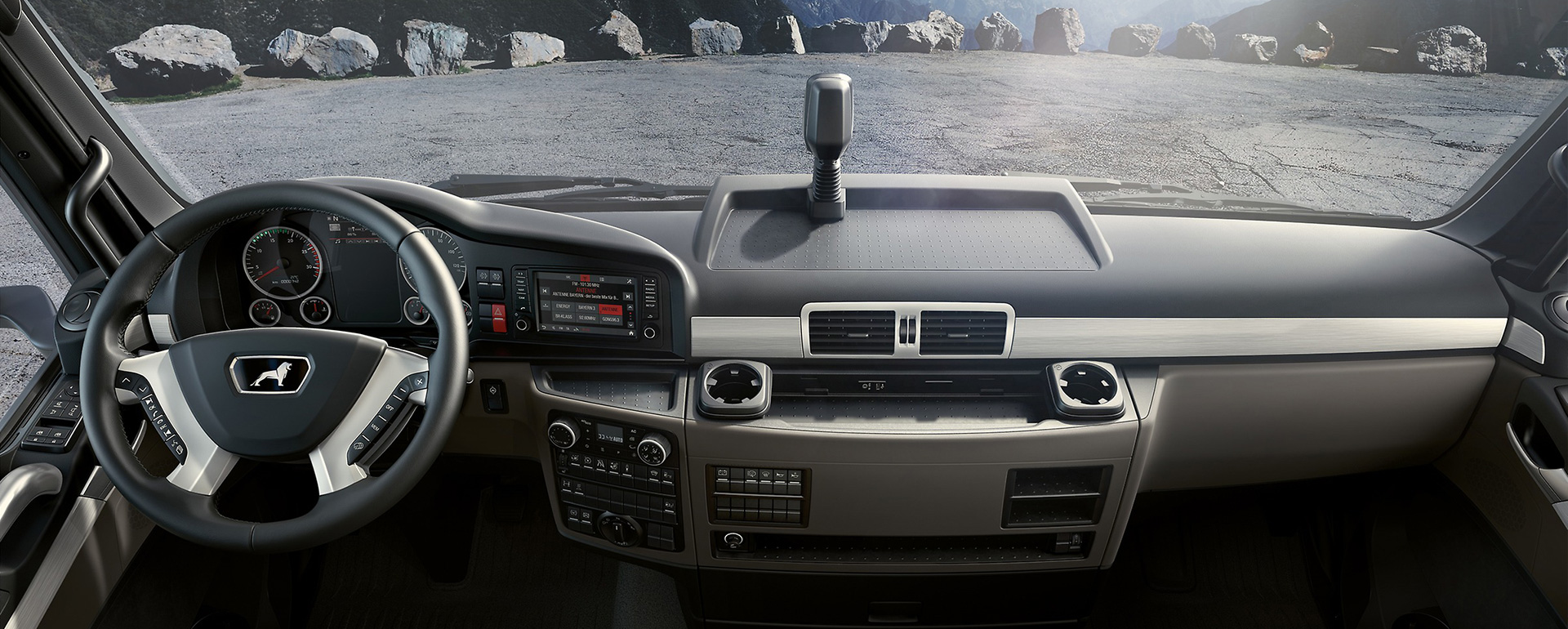

MAN Tronic system (computer-controlled instrument panel), automatic electronic travel recorder for the driver, fuel meter, tachometer, engine oil pressure gauge, and reversing alarm, etc. Rated for 3 passengers, 2 front passenger seats
